Qingdao Chenyu Is a company which can provide the globe valves, gate valves, angle valves, check valves, butterfly valve, ball valve and some valve parts and fittings.
We can provide the sample if need.
Min Order:10 pcs.
Package: Exported package
Paint: Gray, Blue or customized
Class approved: ABS,BV,DNV,LR
Our payment terms:
50% in advance, the rest by T/T against the B/L draft
Our Shipment term :EXW, FOB, CIF,CIP
materals parts of the DIN 3352 gate valve
NO. | PARTS | MATERIALS | NO. | PARTS | MATERIALS |
1 | BODY | GGG25/GGG40 | 11 | gasket | Graphite |
2 | SEAL RING | BRASS | 12 | packing box | GGG40 |
3 | DISC RING | BRASS | 13 | bolt | 35# steel |
4 | DISC | GGG25/GGG40 | 14 | nut | 25# steel |
5 | STEM NUT | BRASS | 15 | nut | 25# steel |
6 | NUT | 25# steel | 16 | washer | Q235 |
7 | GASKET | Graphite | 17 | handwheel | GGG40 |
8 | BOLT | 35# steel | 18 | packing cup | GGG40 |
9 | STEM | 2cr13 | 19 | packing | Graphite |
10 | BONNET | GGG25/GGG40 |

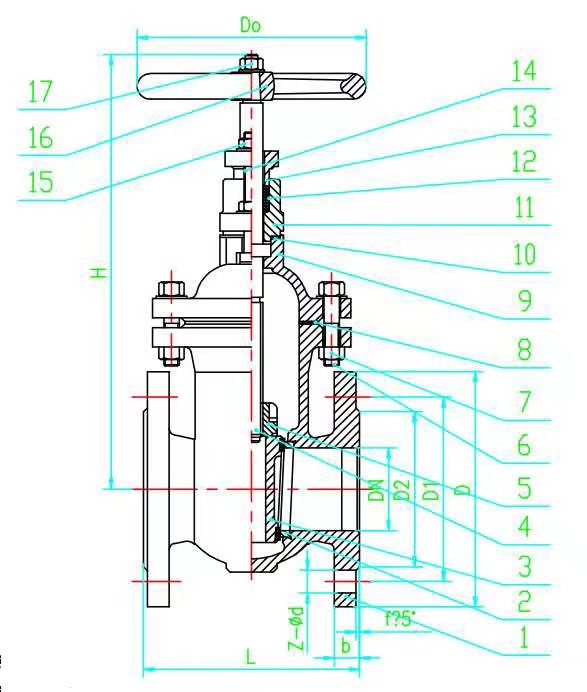

DIN 3202-F4 type PN16 non-rising stem gate valve dimension:
DN | L | D | D1 | D2 | b | H | f | Z-d | D0 |
40 | 140 | 150 | 110 | 88 | 18 | 278 | 3 | 4-18 | 160 |
50 | 150 | 165 | 125 | 102 | 20 | 331 | 3 | 4-18 | 160 |
65 | 170 | 185 | 145 | 122 | 20 | 342 | 3 | 4-18 | 160 |
80 | 180 | 200 | 160 | 138 | 22 | 363 | 3 | 8-18 | 180 |
100 | 190 | 220 | 180 | 158 | 22 | 382 | 3 | 8-18 | 200 |
125 | 200 | 250 | 210 | 188 | 24 | 457 | 3 | 8-18 | 280 |
150 | 210 | 285 | 240 | 212 | 24 | 492 | 3 | 8-23 | 280 |
200 | 230 | 340 | 295 | 268 | 26 | 586 | 3 | 12-23 | 280 |
250 | 250 | 405 | 355 | 320 | 28 | 676 | 3 | 12-27 | 320 |
300 | 270 | 460 | 410 | 378 | 28 | 737 | 4 | 12-27 | 320 |
Qingdao Chenyu Is a company which can provide the globe valves, gate valves, angle valves, check valves, butterfly valve, ball valve and some valve parts and fittings.
We can provide the sample if need.
Min Order:10 pcs.
Package: Exported package
Paint: Gray, Blue or customized
Class approved: ABS,BV,DNV,LR
Our payment terms:
50% in advance, the rest by T/T against the B/L draft
Our Shipment term :EXW, FOB, CIF,CIP
materals parts of the DIN 3352 gate valve
NO. | PARTS | MATERIALS | NO. | PARTS | MATERIALS |
1 | BODY | GGG25/GGG40 | 11 | gasket | Graphite |
2 | SEAL RING | BRASS | 12 | packing box | GGG40 |
3 | DISC RING | BRASS | 13 | bolt | 35# steel |
4 | DISC | GGG25/GGG40 | 14 | nut | 25# steel |
5 | STEM NUT | BRASS | 15 | nut | 25# steel |
6 | NUT | 25# steel | 16 | washer | Q235 |
7 | GASKET | Graphite | 17 | handwheel | GGG40 |
8 | BOLT | 35# steel | 18 | packing cup | GGG40 |
9 | STEM | 2cr13 | 19 | packing | Graphite |
10 | BONNET | GGG25/GGG40 |
DIN 3202-F4 type PN16 non-rising stem gate valve dimension:
DN | L | D | D1 | D2 | b | H | f | Z-d | D0 |
40 | 140 | 150 | 110 | 88 | 18 | 278 | 3 | 4-18 | 160 |
50 | 150 | 165 | 125 | 102 | 20 | 331 | 3 | 4-18 | 160 |
65 | 170 | 185 | 145 | 122 | 20 | 342 | 3 | 4-18 | 160 |
80 | 180 | 200 | 160 | 138 | 22 | 363 | 3 | 8-18 | 180 |
100 | 190 | 220 | 180 | 158 | 22 | 382 | 3 | 8-18 | 200 |
125 | 200 | 250 | 210 | 188 | 24 | 457 | 3 | 8-18 | 280 |
150 | 210 | 285 | 240 | 212 | 24 | 492 | 3 | 8-23 | 280 |
200 | 230 | 340 | 295 | 268 | 26 | 586 | 3 | 12-23 | 280 |
250 | 250 | 405 | 355 | 320 | 28 | 676 | 3 | 12-27 | 320 |
300 | 270 | 460 | 410 | 378 | 28 | 737 | 4 | 12-27 | 320 |
