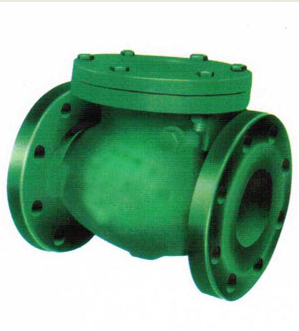

PN10 16 CI SWING CHECK VALVE

DIN Swing Check Valve PN10 PN16 BS ANSI
Technical Specification
1.Face to Face: DIN3202 F6
2.Flanges: EN 1092-2 PN16
3.Hydraulic test to: ISO 5208
4.Seat Test Pressure: 17.6bar
Availability:
Quantity:
Inquire Add to Basket

wechat sharing button
linkedin sharing button
sharethis sharing button

  • customized or without brand

71722

MATERIAL LIST

Part Material English Standard
Boby Cast Iron BS1452 Gr.220
Disk Cast Iron BS1452 Gr.220
Nut Steel BS970 43A
Hanger Ductile Iron BS2789 Gr.420-12
Seat Rings Brass BS1400 PCB1
Disc Rings Brass BS1400 PCB1
Hinge pin Stainless Steel BS970 420S37
Bolts Steel BS970 43A
Nuts Steel BS970 43A
Body Gasket Graphite BS2494 Type W
Bonnet Cast Iron BS1452 Gr.220

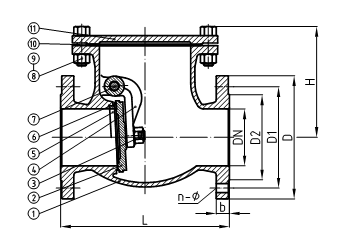

DIMENSIONS                                                       Unit：mm

DN L D D1 D2 n-Ø b H
mm in
40 1 1/2 180 150 110 88 4-19 18 114
50 2 200 165 125 99 4-19 20 127
65 2 1/2 240 185 145 118 4-19 20 130
80 3 260 200 160 132 8-19 22 150
100 4 300 220 180 156 8-19 24 164
125 5 350 250 210 184 8-19 26 185
150 6 400 285 240 211 8-23 26 205
200 8 500 340 295 266 12-23 30 249
250 10 600 405 355 319 12-27 32 305
300 12 700 460 410 370 12-27 32 333
350 14 800 520 470 430 16-27 36 378
400 16 900 580 525 490 16-30 38 405
