DIN3202
customized or without brand
84818040
The y-strainer with cast iron GG25 body and flange connection PN16 are the most common filter version. The body of this filter has a y-shape, hence the name. This type of filter can easily be placed inline as a filter system and keeps the impurities inside the sieve. This Y-strainer is suitable for water applications, compressed air, chemical and pharmaceutical industry and petrochemicals and is mainly used to protect pumps, measuring equipment and valves.
MATERIAL LIST
| No. | Part | Material | Geman Seandayd |
| 1 | Body | Ductile Iron | GGG25 |
| 2 | Screen | Stainless Steel | DIN SS304 |
| 3 | Gasket | Vulcanized NBR | |
| 4 | Bolt | Carbon Steel | DIN RRST37-2 |
| 5 | Bonnet | Ductile Iron | GGG25 |
| 6 | Plug | Carbon Steel | DIN RRST37-2 |

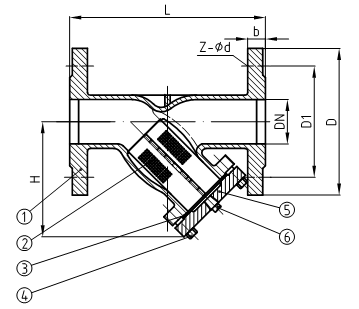

DIMENSIONS Unit：mm
| DN | L | D | D1 | Z-Ød | b | H | |
| mm | in | ||||||
| 50 | 2 | 230 | 165 | 125 | 4-18 | 19 | 153 |
| 65 | 2 1/2 | 290 | 185 | 145 | 4-18 | 19 | 183 |
| 80 | 3 | 310 | 200 | 160 | 8-18 | 19 | 219 |
| 100 | 4 | 350 | 220 | 180 | 8-18 | 19 | 238 |
| 125 | 5 | 400 | 250 | 210 | 8-18 | 19 | 279 |
| 150 | 6 | 480 | 285 | 240 | 8-22 | 19 | 315 |
| 200 | 8 | 600 | 340 | 295 | 12-22 | 20 | 400 |
| 250 | 10 | 730 | 405 | 355 | 12-26 | 22 | 482 |
| 300 | 12 | 850 | 460 | 410 | 12-26 | 24.5 | 565 |
