JIS10K Flange Ball Valve CF8

JIS 10K Flanged Ball Valve SS304 SS316 Materials:
1.Basic design and manufacture according to ANSI B16.34；
2.Face-to-face dimensions complied with JIS B2002；
3.Flange ends complied with JIS B2220；
4.Inspection and tested according to API598.
Availability:
Quantity:
Inquire Add to Basket

wechat sharing button
linkedin sharing button
sharethis sharing button

  • Q241F

  • without brand or OEM

  • 84818040

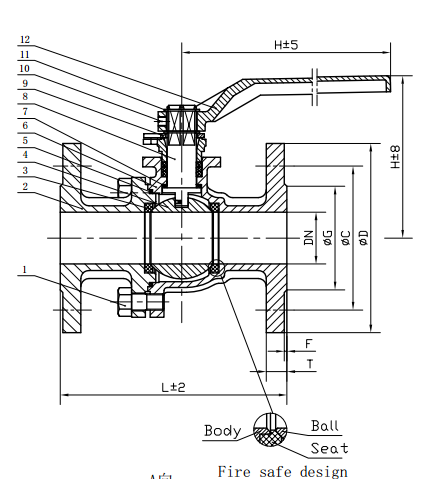

JIS 10K 20K Ball Valve materials sheets:

JIS


NO. part name Materials NO. part name Materials
1 Hex bolt SUS304 9 Locating piece SUS304
2 Bonnet SCS14 10 Screw nail SUS304
3 Seat PTFE 11 Ring waser SUS304
4 Ball SUS316 12 Handle SS201
5 Gasket PTFE 13 Hex bolt SCS13
6 Body SCS14 14 Packing gland SS201
7 Stem gasket PTFE 15 Packing PTFE
8 Stem SUS316 16
