Stainless Steel Flange ACC To ANSI/ASME/EN/JIS

manufacturing all kinds Flanges to standards ANSI/ DIN/ BS/ EN/ JIS/ GOST/ AS, etc. Size from DN15- N 5000, 10+ years of production history, high quality and factory price.

Sales models: wholesale

MOQ:100pcs

Quantity:
Availability:





Inquire Add to Basket

Brand:
without brand
Code:
8481 9010 00

Product Description

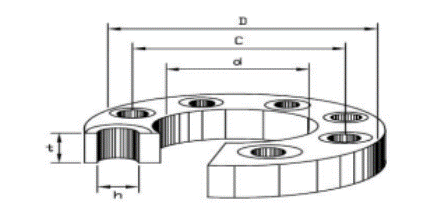

Flat Face Flanges Dimensions

flange (2)

NPS	Diameter of Pipe		Flange I.Diameter	NUmber of holes	Flange Diameter	Thickness of Flange	Diameter of Bolt Circle	Diameter of Bolt Holes	Approx. Weight
DN	ISO	DIN	D5	BN	D	b	K	d2	KG/PCS
10	–	14	14.5	4	90	16	60	14	0.7
10	17.2	–	17.7	4	90	16	60	14	0.69
15	–	20	21	4	95	16	65	14	0.77
15	21.3	–	22	4	95	16	65	14	0.77
20	–	25	26	4	105	18	75	14	1.06
20	26.9	–	27.6	4	105	18	75	14	1.05
25	–	30	31	4	115	18	85	14	1.27
25	33.7	–	34.4	4	115	18	85	14	1.25
32	–	38	39	4	140	18	100	18	1.86
32	42.4	–	43.1	4	140	18	100	18	1.83
40	–	44.5	45.5	4	150	18	110	18	2.12
40	48.3	–	49	4	150	18	110	18	2.09
50	–	57	58.1	4	165	20	125	18	2.78
50	60.3	–	61.1	4	165	20	125	18	2.74
65	76.1	–	77.1	8	185	22	145	18	3.48
80	88.9	–	90.3	8	200	24	160	18	4.33
100	–	108	109.6	8	235	24	190	22	5.82
100	114.3	–	115.9	8	235	24	190	22	5.61
125	–	133	134.8	8	270	26	220	26	7.91
125	139.7	–	141.6	8	270	26	220	26	7.6
150	–	159	161.1	8	300	28	250	26	10.12
150	168.3	–	170.5	8	300	28	250	26	9.58
175	193.7	–	196.1	12	350	32	295	30	14.45
200	219.1	–	221.8	12	375	34	320	30	16.9
250	–	267	270.2	12	450	38	385	33	27.28
250	273	–	276.2	12	450	38	385	33	26.51
300	323.9	–	327.6	16	515	42	450	33	36.38
350	355.6	–	359.7	16	580	46	510	36	52.83
350	–	368	372.2	16	580	46	510	36	50.24
400	406.4	–	411	16	660	50	585	39	74.71
400	–	419	423.7	16	660	50	585	39	71.44
500	508	–	513.6	20	755	52	670	42	86.87
600	610	–	616.5	20	890	54	795	48	121.84
700	711	–	716	24	995	58	900	48	150.93
800	813	–	818	24	1140	64	1030	56	219.08
900	914	–	920	28	1250	70	1140	56	271.16
1000	1016	–	1022	28	1360	78	1250	56	344.95

flanges flat flange pipe flange flanges material type of flanges JIS flanges

ChenYu is a integration of Industry and Trade modern enterprise, this team was founded by the elites in valve industry.
